scSidekick - Pathway Analysis: RunGSEA • scSidekick

Overview

RunGSEA() performs gene set enrichment analysis (GSEA) on a Seurat object. It handles the full pipeline internally:

Subset by split.by (e.g. one GSEA per broad cell type)
Run Wilcoxon DE with RunWilcoxAUC(), grouped by group.by
Run fgsea against one or more MSigDB collections
Save lollipop plots (top/bottom pathways per group) and NES heatmaps as PDFs

No pre-computed DE table is needed - just pass the Seurat object.

For sample-level pseudobulk GSEA with limma-voom contrasts, see Vignette 09: RunGSEA_pseudobulk.

Standard setup

library(scSidekick)
library(Seurat)
library(SeuratData)
library(dplyr)

data("bmcite")
bmcite <- UpdateSeuratObject(bmcite)
bmcite <- bmcite %>%
  NormalizeData() %>% FindVariableFeatures() %>% ScaleData() %>% RunPCA()
dims <- Determine_nDims(bmcite, elbow_plot = FALSE)
bmcite <- RunUMAP(bmcite, dims = 1:dims$n_dims)
bmcite <- FindNeighbors(bmcite, dims = 1:dims$n_dims)
bmcite <- FindClusters(bmcite, resolution = 0.5)
bmcite <- PrepObject(bmcite,
  variables   = c("lane", "donor", "celltype.l1", "celltype.l2", "seurat_clusters"),
  group.by    = "celltype.l1",
  split.by    = "donor",
  output_dir  = tempdir(),
  object_name = "bmcite")

1. Basic call

res <- RunGSEA(bmcite,
  group.by   = "celltype.l1",
  split.by   = NULL,
  output_dir = tempdir())

You will get a subfolder per geneset dataset and inside you will have heatmaps comparing the NES per group and lollipop plots for each group separately,legeneds and source tables are also saved

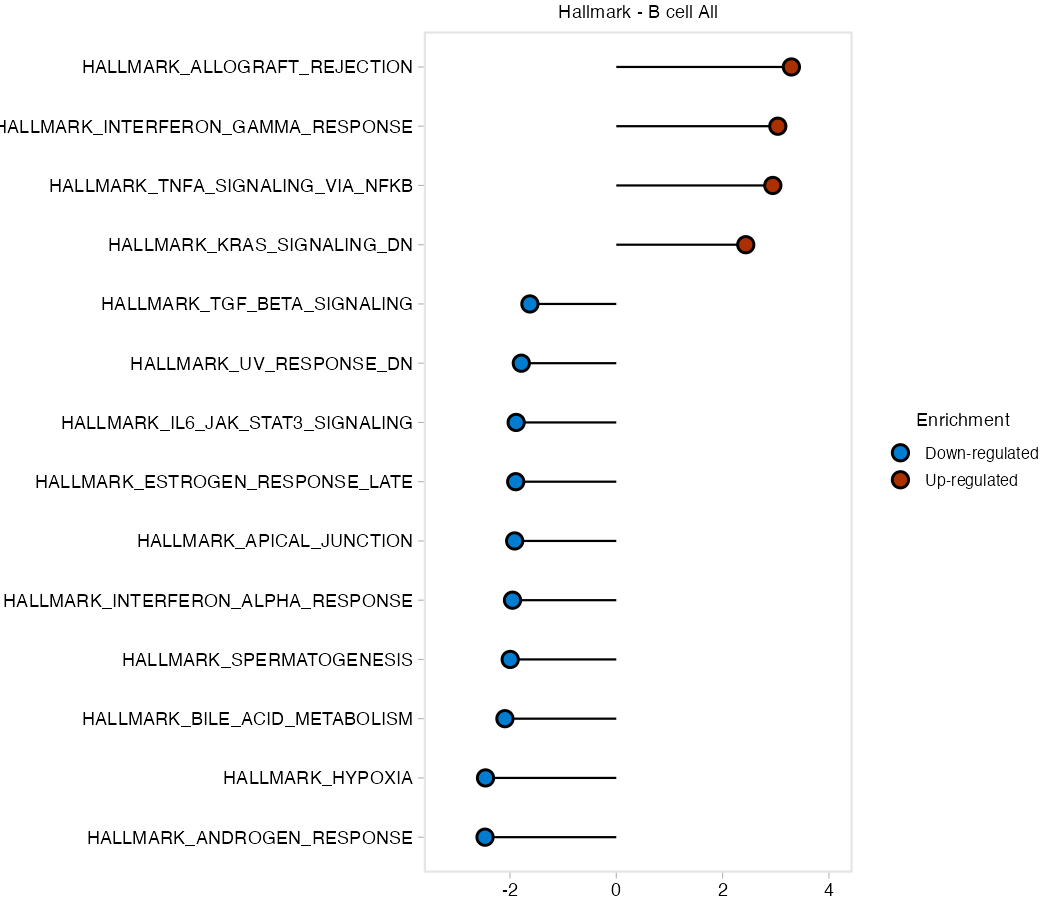

GSEA lollipop plot for the Hallmark pathway database, celltype.l1 = B cell. Dataset: 30,672 cells [bmcite]. Bars are ranked by Normalized Enrichment Score (NES); positive NES (red) = pathways enriched in B cell vs. all other celltype.l1 groups; negative NES (blue) = depleted. Only gene sets with adjusted p < 0.05 are shown.

group.by defines the groups being compared (e.g. cell types, clusters). split.by = NULL runs a single GSEA on the whole object. Set split.by to a broad cell-type column (e.g. "celltype.l1") to run GSEA separately within each major lineage.

By default RunGSEA tests four MSigDB collections: Hallmark, KEGG, Reactome, and WikiPathways.

What gets saved alongside the plots

Every run also writes two small JSON files into its own timestamped run folder under output_dir, so a figure is never separated from exactly how it was made:

analysis_params.json - the literal function call as typed, every parameter that was actually used, and a ready-to-paste methods paragraph.
run_fingerprint.json - the parameter fingerprint resume/resume_folder match against to detect a repeat run, so re-running with the same settings reuses the existing output instead of recomputing it.

analysis_params.json

json
{
  "date": "2026-09-02",
  "function_call": "RunGSEA(seurat_object = bmcite, group.by = \"celltype.l1\", split.by = NULL, output_dir = tempdir())",
  "gsea_method": "single-cell (Wilcoxon/presto + fgsea)",
  "gsea_group_by": "celltype.l1",
  "gsea_assay": "RNA",
  "gsea_min_cells": 20,
  "gsea_databases": ["Hallmark", "KEGG", "Reactome", "WP"],
  "gsea_species": "Homo sapiens",
  "gsea_padj_thresh": 0.05,
  "gsea_logfc_thresh": 0.1,
  "gsea_top_n": 5,
  "gsea_nes_cutoff": 1,
  "gsea_methods_text": "Gene set enrichment analysis (GSEA) was performed using fgsea (Korotkevich et al., 2021) with Wilcoxon rank-sum AUC pre-ranking via presto (assay: 'RNA'). Differential expression was computed comparing celltype.l1 groups. Subsets with fewer than 20 cells were skipped. The following MSigDB gene-set collections were tested: Hallmark, KEGG, Reactome, WP. Gene sets with fewer than 10 members were excluded. Significance threshold: adjusted p < 0.05; minimum log-fold-change for DE pre-ranking: 0.1. Lollipop plots show the top/bottom 10 significant pathways per celltype.l1 group ranked by Normalized Enrichment Score (NES). Summary heatmaps show the union of the top & bottom 5 pathways per group, filtered to pathways with max |NES| >= 1 across all groups."
}

run_fingerprint.json

json
{"group.by":"celltype.l1","split.by":null,"label.by":null,"species":"Homo sapiens","assay":"RNA","min_cells":20,"gene_sets_names":null,"deg_df_dim":null,"deg_df_cols":null,"pathway_sets":{"Hallmark":{"category":"H"},"KEGG":{"category":"C2","subcategory":"CP:KEGG"},"Reactome":{"category":"C2","subcategory":"CP:REACTOME"},"WP":{"category":"C2","subcategory":"CP:WIKIPATHWAYS"}},"search_terms":null}

2. Split by broad cell type

The most common use: compare detailed subtypes (celltype.l2) within each major lineage (celltype.l1).

res <- RunGSEA(bmcite,
  group.by   = "celltype.l2",
  split.by   = "celltype.l1",
  output_dir = tempdir())

This produces one independent GSEA per level of celltype.l1. For each, DE is computed between celltype.l2 groups and pathways are ranked by NES.

3. Custom pathway collections

Supply any combination of MSigDB collections via pathway_sets. Each element needs a category and an optional subcategory.

res <- RunGSEA(bmcite,
  group.by     = "celltype.l1",
  split.by     = NULL,
  output_dir   = tempdir(),
  pathway_sets = list(
    Hallmark    = list(category = "H"),
    ImmuneSigDB = list(category = "C7", subcategory = "IMMUNESIGDB"),
    GO_BP       = list(category = "C5", subcategory = "GO:BP")
  ))

Run msigdbr::msigdbr_collections() to see all available collections.

4. Mouse datasets

res <- RunGSEA(brain,
  group.by   = "seurat_clusters",
  split.by   = NULL,
  species    = "Mus musculus",
  output_dir = tempdir())

5. Adjusting thresholds

padj_thresh and logfc_thresh filter DE results before ranking. top_n controls how many pathways appear per group in summary heatmaps.

res <- RunGSEA(bmcite,
  group.by      = "celltype.l1",
  split.by      = NULL,
  padj_thresh   = 0.01,
  logfc_thresh  = 0.25,
  top_n         = 10L,
  output_dir    = tempdir())

6. Resuming a long run

resume = TRUE skips subsets for which output files already exist in output_dir. Essential when restarting a run that was interrupted.

res <- RunGSEA(bmcite,
  group.by   = "celltype.l2",
  split.by   = "celltype.l1",
  output_dir = tempdir(),
  resume     = TRUE)

7. Customizing heatmap colors

By default NES heatmaps use a 5-stop diverging palette centered at 0 (blue - light blue - white - light orange - orange-red). Override with any circlize::colorRamp2 object via heatmap_colors.

# Classic blue-white-red (3-stop)
col_bwr <- circlize::colorRamp2(c(-3, 0, 3), c("#2166ac", "white", "#d6604d"))

# Purple-green (PRGn)
col_prg <- circlize::colorRamp2(
  c(-3, -1.5, 0, 1.5, 3),
  c("#762a83", "#c2a5cf", "white", "#7fbf7b", "#1b7837"))

# Tighter scale for subtle signals
col_tight <- circlize::colorRamp2(c(-1.5, 0, 1.5),
                                   c("#007dd1", "white", "#ab3000"))

res <- RunGSEA(bmcite,
  group.by       = "celltype.l1",
  split.by       = NULL,
  output_dir     = tempdir(),
  heatmap_colors = col_bwr)

8. Return value

RunGSEA returns a nested list, three levels deep: res[[label.by level]][[split.by level]][[pathway_sets name]]. When label.by/split.by are NULL (as in the basic call above), both default to a single "All" level, so the whole object’s Hallmark result sits at res$All$All$Hallmark. Each of those leaf lists holds:

# Per-cell-type DE table that fed into fgsea
head(res$All$All$Hallmark$de_table)

##         feature  group     avgExpr         logFC statistic       auc
## 1    FO538757.2 B cell 0.091865017 -0.0186039583  49510254 0.4900695
## 2    AP006222.2 B cell 0.028147286  0.0041525507  50521083 0.5000750
## 3 RP4-669L17.10 B cell 0.001457705  0.0002902015  50505112 0.4999169
## 4 RP11-206L10.9 B cell 0.022528025  0.0006810403  50476512 0.4996338
## 5     LINC00115 B cell 0.001638244 -0.0052171223  50321794 0.4981024
## 6        FAM41C B cell 0.024573551  0.0105087175  50768456 0.5025236
##           pval         padj     pct_in    pct_out
## 1 1.401575e-05 4.321785e-05 5.59552358 7.67859133
## 2 9.491639e-01 9.637830e-01 1.86517453 1.85742412
## 3 7.564184e-01 8.081608e-01 0.07993605 0.09658605
## 4 7.343831e-01 7.913286e-01 1.49213962 1.56766596
## 5 1.386907e-03 3.150360e-03 0.13322675 0.51264906
## 6 5.055653e-03 1.035669e-02 1.51878497 1.01786842

# Group x pathway NES matrix (what the summary heatmap is drawn from)
res$All$All$Hallmark$nes_matrix[1:5, ]

##                                  B cell  Mono/DC         NK Progenitor cells
## HALLMARK_ADIPOGENESIS        -5.0069744 3.734941 -4.3796582         4.833929
## HALLMARK_ALLOGRAFT_REJECTION  3.2940329 3.848317  3.5806126        -4.396136
## HALLMARK_ANDROGEN_RESPONSE   -2.4689894 2.124402 -2.1480349         2.621058
## HALLMARK_ANGIOGENESIS        -0.6820172 2.530392 -0.7475687        -1.347162
## HALLMARK_APICAL_JUNCTION     -1.9116398 2.331259  1.1694316         1.008612
##                                  T cell
## HALLMARK_ADIPOGENESIS        -5.6178413
## HALLMARK_ALLOGRAFT_REJECTION  3.8213925
## HALLMARK_ANDROGEN_RESPONSE   -2.7903788
## HALLMARK_ANGIOGENESIS         0.6048795
## HALLMARK_APICAL_JUNCTION     -1.4101986

# Named list of lollipop ggplots, one per group.by level
names(res$All$All$Hallmark$lollipop_plots)

## [1] "B cell"           "Mono/DC"          "NK"               "Progenitor cells"
## [5] "T cell"

9. Finding pathways by keyword - `PlotGSEAEnrichment()`

A GSEA run returns hundreds of pathways with long, exact MSigDB names. You should not have to know that the apoptosis pathway is called HALLMARK_APOPTOSIS. PlotGSEAEnrichment() auto-discovers the result CSVs and selects pathways by keyword search instead.

Pain point fixed. Describe the biology, not the exact string. Pass a character vector for OR logic, or a list of vectors for AND-groups (which are then OR’d) - all case-insensitive regex.

# OR: any pathway mentioning "apoptosis" OR "cell_death"
PlotGSEAEnrichment(
  output_dir   = "./Figures/Pathways",
  search_terms = c("apoptosis", "cell_death"))

# AND-group: pathways mentioning BOTH "interferon" AND "response"
PlotGSEAEnrichment(
  output_dir   = "./Figures/Pathways",
  search_terms = list(c("interferon", "response")))

# Mixed: (T_cell AND activation) OR inflammation
PlotGSEAEnrichment(
  output_dir   = "./Figures/Pathways",
  search_terms = list(c("t_cell", "activation"), "inflammation"))

10. Which genes drive a pathway? - `VisualizeLeadingEdge()`

A significant NES tells you a pathway is enriched, but not which genes are responsible. VisualizeLeadingEdge() pulls the leading-edge genes for the pathways you select (by the same keyword search), then draws a per-cell expression heatmap - and, optionally, a dotplot, stacked violins, and boxplots, intersected with your DEGs.

Pain point fixed. Go from “this pathway is up” to “these specific genes are driving it, in these cells” - visually, in one call.

VisualizeLeadingEdge(bmcite,
  gsea_files   = "./Figures/Pathways",     # a dir of GSEA CSVs, or file paths
  search_terms = c("interferon"),
  group.by     = "celltype.l1",
  split.by     = "donor",
  output_dir   = "./Figures/LeadingEdge")

Supply a DEG table via deg_df to intersect leading-edge genes with your significant differentially expressed genes for a focused, defensible gene set.

Parameter reference

Parameter	Type	Default	Description
`seurat_object`	Seurat	required	Clustered, annotated Seurat object
`group.by`	character	`"Assignment"`	Column defining groups for DE comparison
`split.by`	character or `NULL`	`"GlobalAssignment"`	Column for independent sub-runs (`NULL` = whole object)
`label.by`	character or `NULL`	`NULL`	Outer subsetting column
`pathway_sets`	named list	Hallmark + KEGG + Reactome + WP	MSigDB collections to test
`species`	character	`"Homo sapiens"`	Species for `msigdbr`
`padj_thresh`	numeric	`0.05`	DE/fgsea adjusted p-value cutoff
`logfc_thresh`	numeric	`0.1`	Minimum log-fold-change for DE filtering
`top_n`	integer	`5`	Top/bottom pathways per group in summary heatmaps
`output_dir`	character or `NULL`	`NULL`	Directory for PDFs and CSVs (`NULL` = return only)
`resume`	logical	`FALSE`	Skip already-completed subsets
`heatmap_colors`	`colorRamp2` or `NULL`	`NULL`	Custom color function for NES heatmaps; `NULL` uses the 5-stop blue-white-orange-red default
`heatmap_params`	named list	`list(...)`	Extra arguments forwarded to `ComplexHeatmap::Heatmap()`
`width`	numeric or `NULL`	`NULL`	Override the auto-calculated heatmap PDF width in inches
`height`	numeric or `NULL`	`NULL`	Override the auto-calculated heatmap PDF height in inches
`timestamp`	logical	`TRUE`	Write each run into its own timestamped subfolder under `output_dir`

Session info

sessionInfo()
